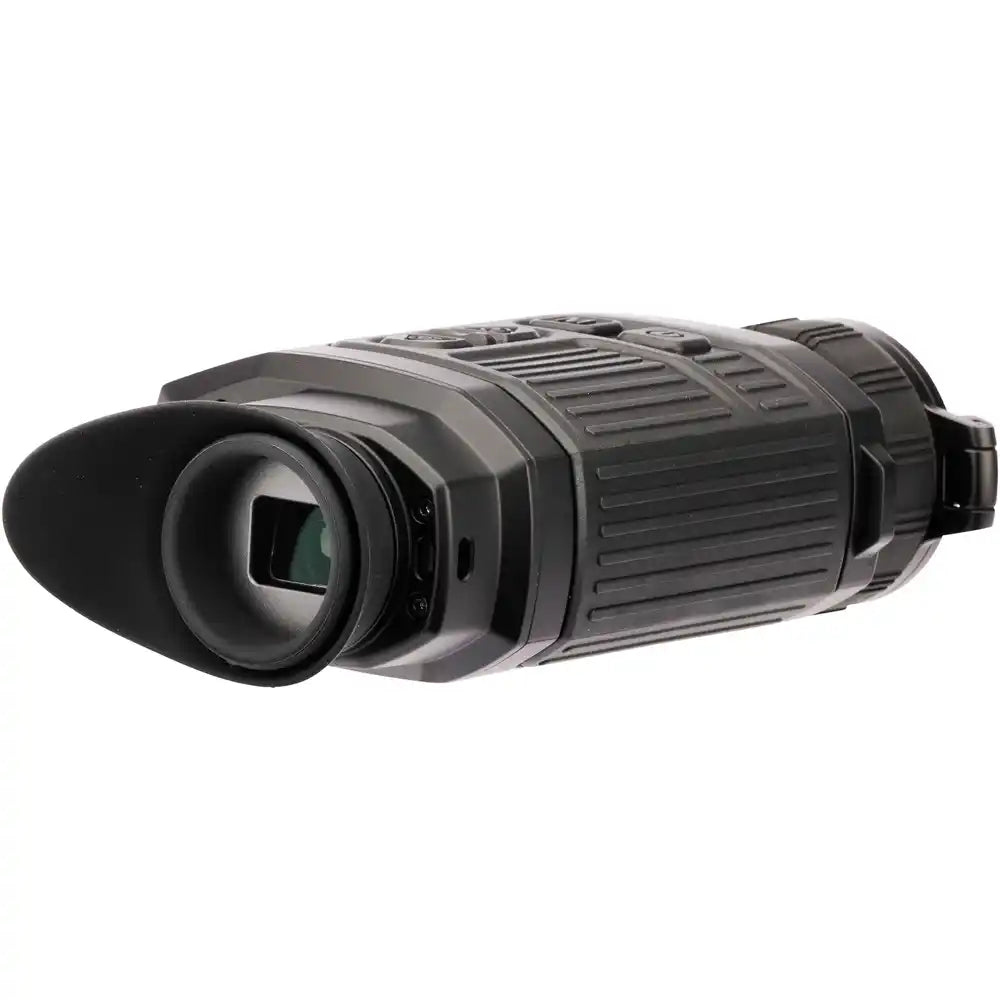

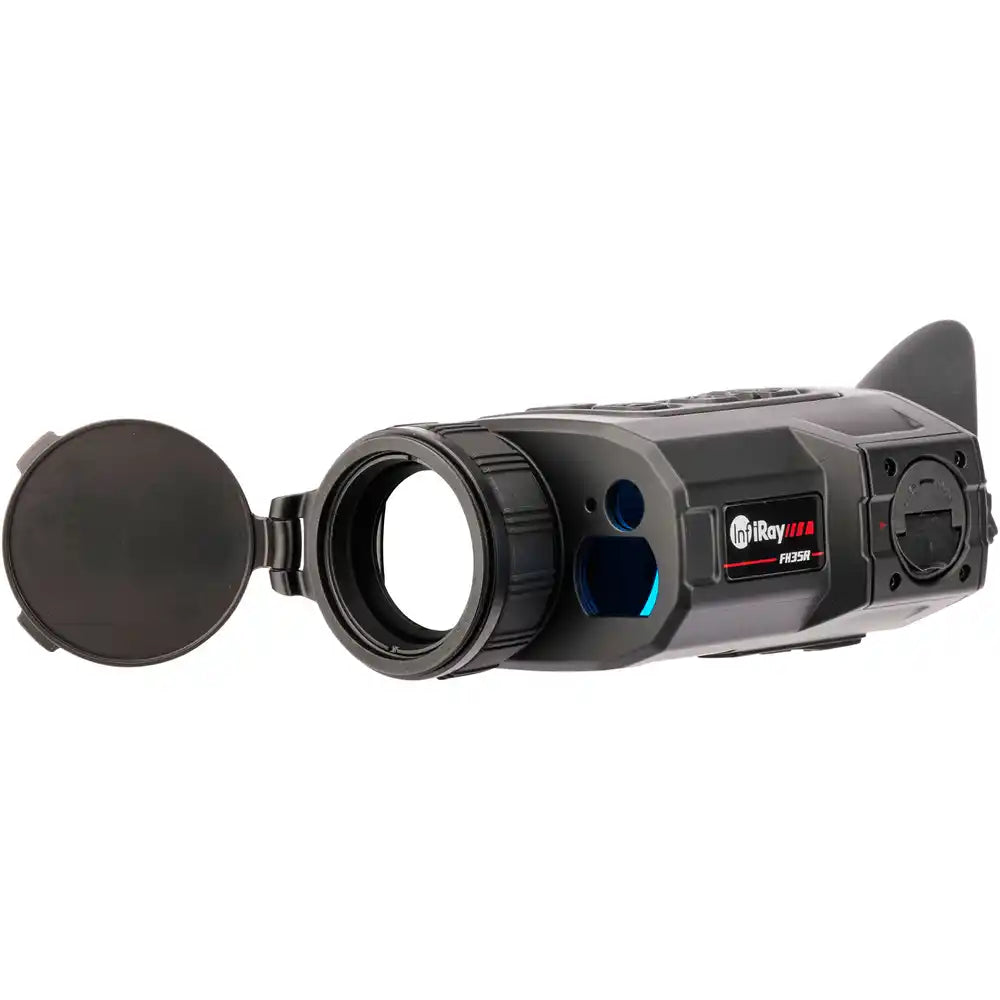

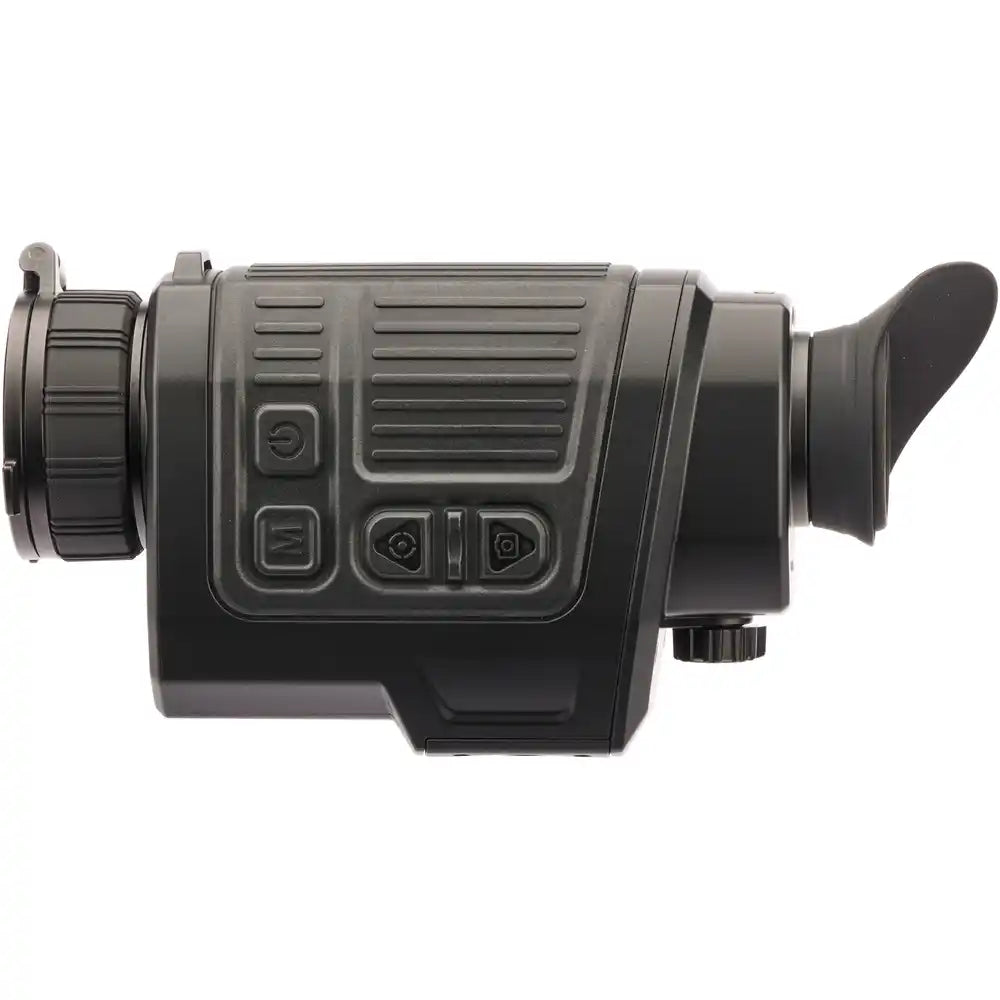

Thermal imaging camera with rangefinder FH35R
The InfiRay FH35R is a high-end thermal imaging device with distance measurement. It captures all the fine details and precise outdoor observations that modern hunters and professional outdoor users expect from InfiRay products. It's a truly versatile piece of equipment, and when you're out in the wilderness it'll quickly become essential equipment.
High image quality
The FH35R is equipped with a 12μm 640x512 pixel pitch high-resolution sensor, NETD ≤35mk, and uses an OLED display with a resolution of 1024x768. Combined with optimized image algorithms, it produces amazingly clear images.
Dual tone mode
Switching between cool and warm tone is supported for a better visual experience. By setting the cool tone, users experience visually clearer image quality, detailed details and outstanding targets. Warm tone adjustment creates a softer image to avoid visual fatigue caused by long-term use.
Integrated laser rangefinder (LRF) up to 800 m
Built-in laser rangefinder module that enables single and continuous distance measurement, helping to accurately capture the target distance. With an accuracy of ±1m within 800m, accurately assessing distance and terrain is quick and easy.
Long detection distance of 1,818 m
The 35mm lens combined with advanced thermal imaging hardware provides excellent detection. The detection range can reach 1818 meters in complete darkness.
Replaceable battery pack
The battery can be quickly removed and replaced within a few seconds. With a replaceable lithium-ion battery pack, you can enjoy up to 6 hours of battery life. Carrying an additional standard battery pack can extend battery life up to 12 hours.
Photo/video recorder, built-in 32GB storage capacity
The thermal imaging camera is equipped with 32 GB of digital memory for videos and photos. The saved video and photo files can be transferred to the computer via cable or to the mobile phone via WLAN.
WiFi connection and app support
The Finder FH35R and the InfiRay Outdoor application work together to easily process image synchronization and data output. The application offers other features such as access to the InfiRay online community and after-sales support.
TECHNICAL DATA:
- Resolution sensor: 640x512 px
- Pixel sensor: 12 μm
- Frame rate: 50Hz
- Sensor: NETD ≤35mK
- Lens: F35/1.0
- Field of view: 12.6°x10.1°
- Optical magnification: 2x
- Digital zoom: 1x, 2x, 3x, 4x
- Display: OLED, 1024x768 px
- Detection range: 1,818 m
- Power source: Lithium-ion battery pack, replaceable
- Operating time: max. 6 hours (25 °C)
- Laser rangefinder range: 800 m
- Internal memory: 32GB
- Operating temperature: -20°C to +40°C
- Dimensions (LxWxH): 160x90x50 mm
- Weight: 400g
