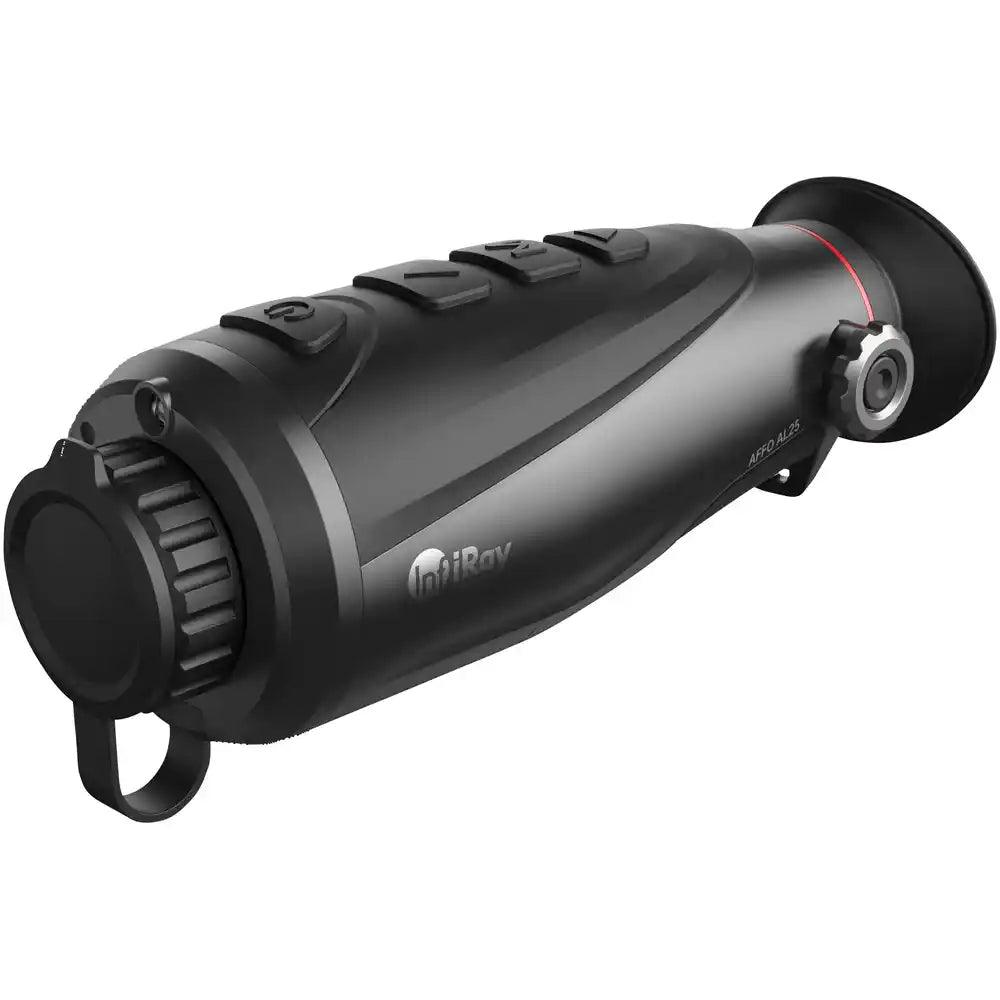

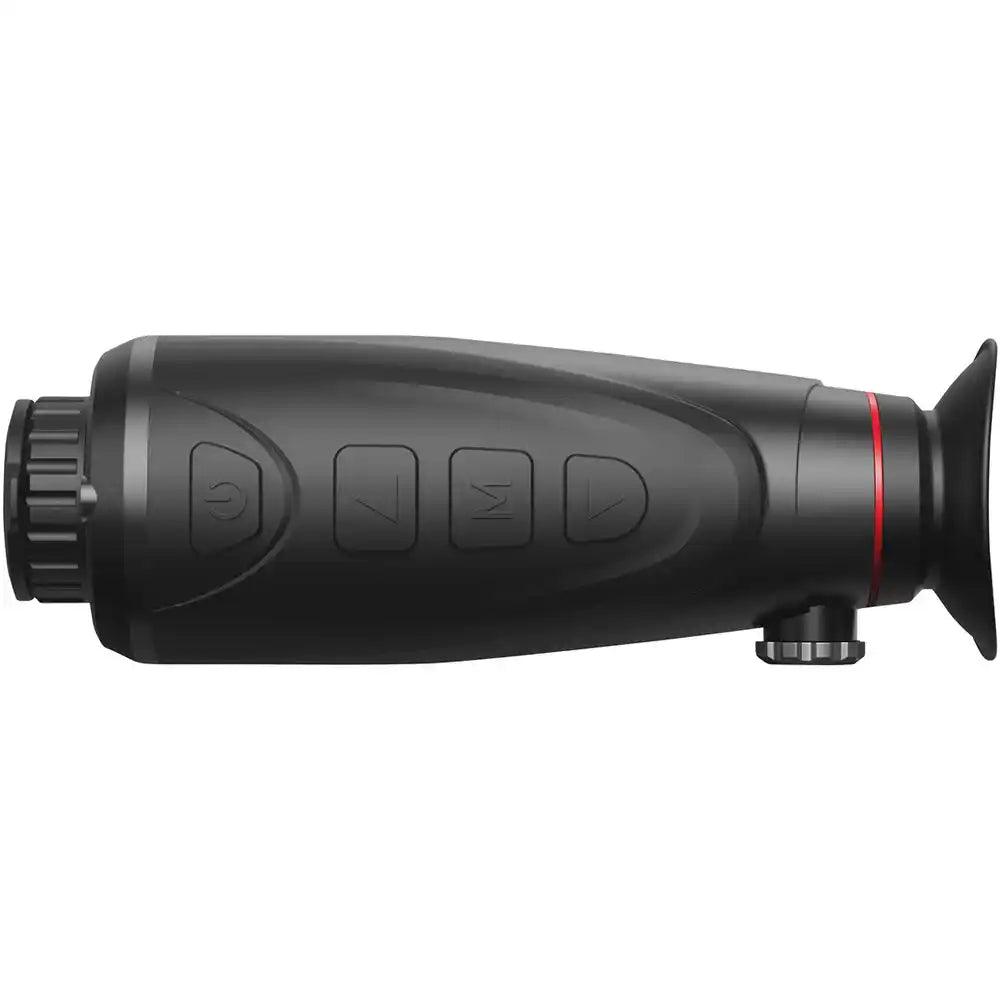

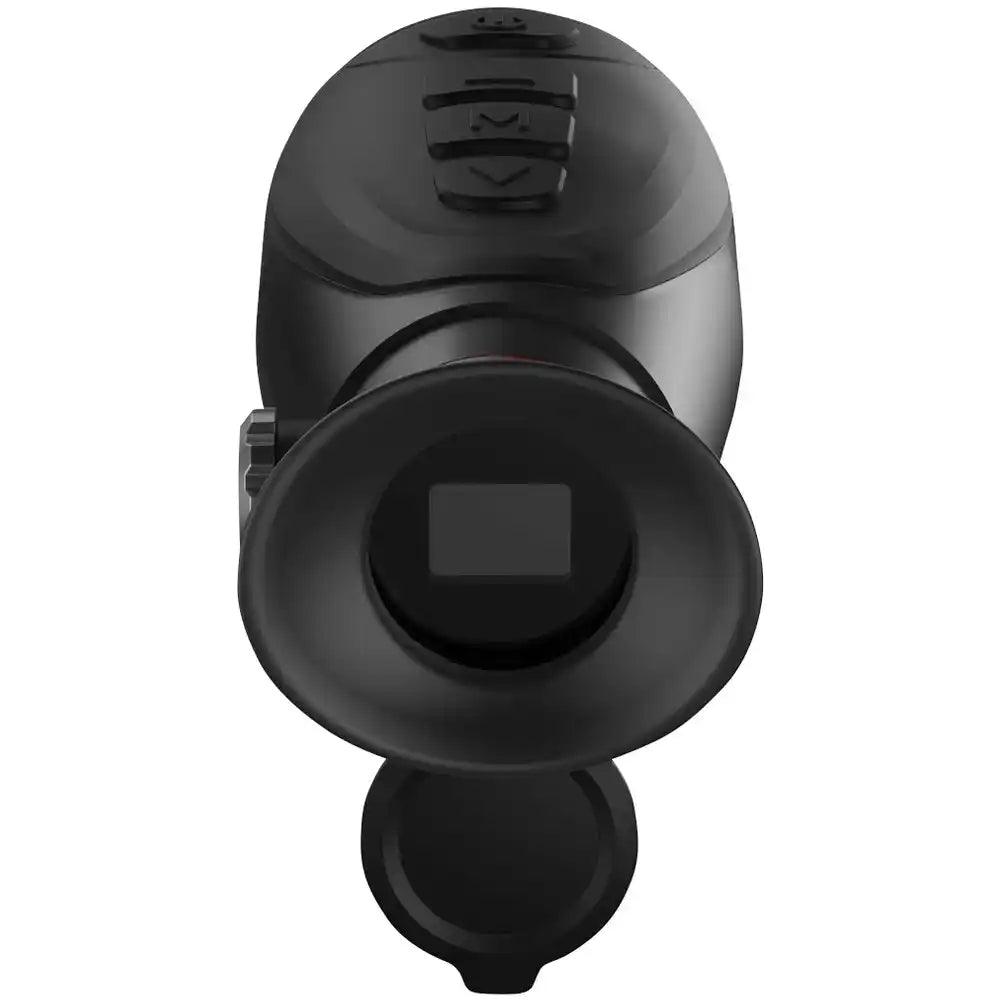

Thermal imaging camera AFFO AL 19

ITEM DESCRIPTION

The Affo AL19 from InfiRay impresses as a compact and handy thermal imaging device with a new design.

The thermal imaging camera is equipped with a 384x288 VoX sensor and an OLED 640x480 display on which the high-contrast images are optimally displayed.

In addition to WiFi and app connection, the Affo AL19 also has a USB-C and HDMI video monitor connection. Images and videos can be stored in memory.

In addition, the 350 g device offers a long operating time of around 7.5 hours and impresses with an incredible range.

With protection class IP66, the thermal imaging device is protected against dust and strong splashes of water and is ideal for outdoor use.

Thanks to its ergonomic design, the device fits comfortably in the hand and is also easy to use.

TECHNICAL DATA:

  • Sensor: 384x288 px
  • Sensor type: WLP VoX sensor
  • Display: OLED 640x480 px
  • Detection distance: 986 m
  • Operating time: up to 7.5 hours.
  • Energy source: Li-ion battery
  • Detector sensitivity: 40 mK
  • Pixel pitch (pitch): 12 µm
  • Frame rate: 50Hz
  • Lens focal length: 19mm
  • Field of view: 13.8° (horizontal) / 10.4° (vertical)
  • Magnification: 1.86x
  • Digital zoom: 4x
  • Diopter adjustment for glasses wearers
  • WiFi and app connection
  • USB-C port
  • HDMI video monitor connection
  • Image and video storage
  • Micro SD
  • Protection class: IP66
  • 1/4 inch camera thread
  • Dimensions (LxWxH): 16.9x6x6 cm
  • Weight: 350g
